JDM Mitsubishi Turbo 4G63T Engine For Sale
$3,890.00
JDM Mitsubishi Turbo 4G63T Engine For Sale
JDM Mitsubishi Turbo 4G63T Engine For Sale.The ultra-robust and ergonomic two-liter,
turbocharged 4G6 series is probably the best-known Mitsubishi engine ever produced.
4G63T motor or generally referred to as 4G63 was introduced in 1988 with JDM Galant VR-4.
it renowned for its reliability and unique ability to pulse a lot of power, without breaking a sweat.
Moreover, there is an incredible number of aftermarket parts, and custom accessories available for it, making it the ideal engine for a Mitsubishi swap or replacement project.
Here you get a top-performance 4G63T engine for sale. Clean, low mileage, used Japanese import engine with right around 51000Km covered.
Parts Included In The JDM Unit
- Power Steering Pump
- Intake Manifold
- Fuel Rail and Injectors
- Flywheel & Clutch Assembly
- Exhaust Manifold
- Engine Wiring Harness
- Turbo
- Throttle Body
- Starter
- Engine Block
- ECU
- Distributor
- Clutch & Pressure plate
- Alternator
- Engine Head & Block

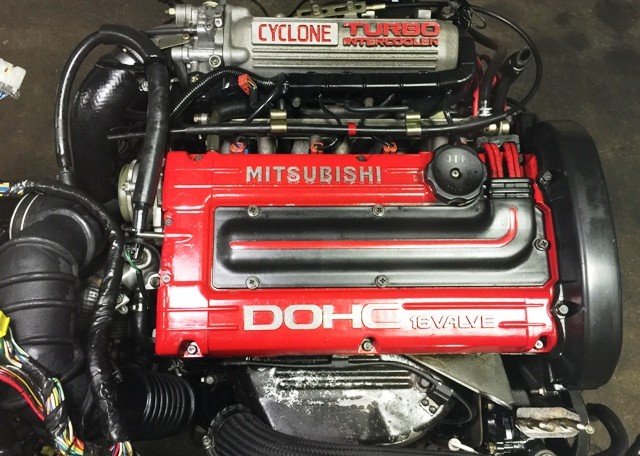

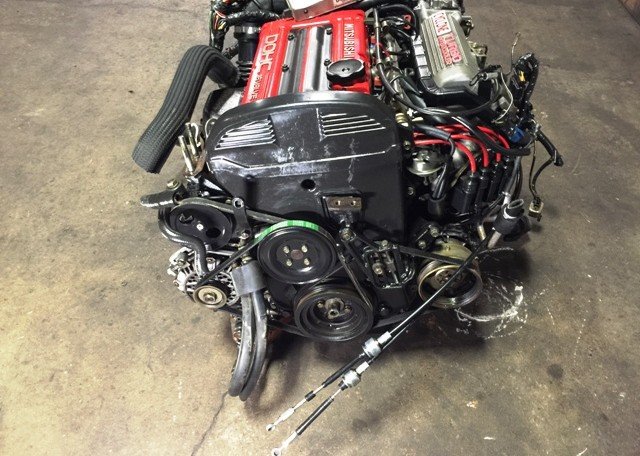

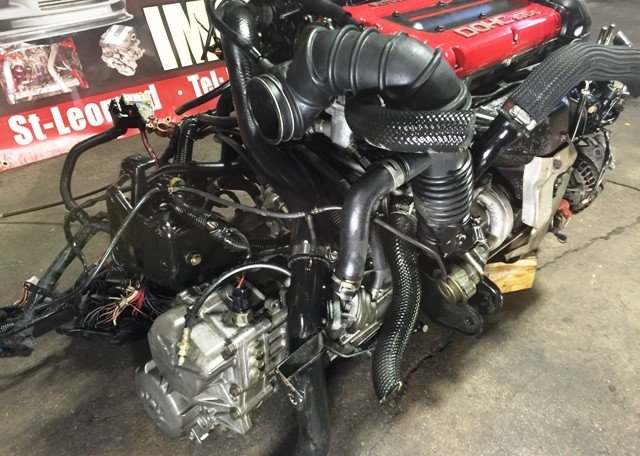

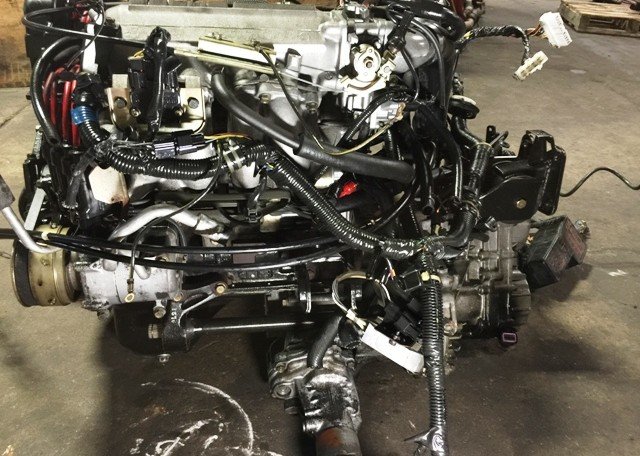

*What you see on the image is exactly what you get!
Mitsubishi 4G63T Engine Reference Specs
| Manufacturer | Kyoto engine plant |
| Also called | Sirius |
| Production | 1987-2007 |
| Cylinder block alloy | Cast-iron |
| Configuration | Inline-4 |
| Valvetrain | DOHC 4 valves per cylinder |
| Piston stroke, mm (inch) | 88 (3.50) |
| Cylinder bore, mm (inch) | 85 (3.19) |
| Compression ratio | 7.8 (1G) 8.5 (1G) 8.8 (2-3G) 9.0 (1G) |
| Displacement | 1997 cc (111.9 cu in) |
| Power output | 80 kW (195 HP) at 6,000 rpm 84 kW (220 HP) at 6,000 rpm 84 kW (230 HP) at 6,000 rpm 84 kW (240 HP) at 6,000 rpm 91 kW (250 HP) at 6,000 rpm 96 kW (260 HP) at 6,000 rpm 96 kW (265 HP) at 6,500 rpm 91 kW (270 HP) at 6,250 rpm 96 kW (272 HP) at 6,500 rpm 96 kW (280 HP) at 6,500 rpm 96 kW (280 HP) at 6,500 rpm 96 kW (280 HP) at 6,500 rpm |
| Torque output | 294 Nm (114 lb·ft) at 3,000 rpm 294 Nm (120 lb·ft) at 3,500 rpm 299 Nm (120 lb·ft) at 2,500 rpm 304 Nm (120 lb·ft) at 3,500 rpm 309 Nm (128 lb·ft) at 3,000 rpm 309 Nm (133 lb·ft) at 3,500 rpm 355 Nm (133 lb·ft) at 3,500 rpm 309 Nm (128 lb·ft) at 3,000 rpm 343 Nm (128 lb·ft) at 2,750 rpm 353 Nm (133 lb·ft) at 3,000 rpm 373 Nm (133 lb·ft) at 2,750 rpm 400 Nm (133 lb·ft) at 3,000 rpm |
| Redline | – |
| HP per liter | 98 110 115 120 125 130 132 135 136 140 |
| Fuel type | Gasoline |
| Weight, kg (lbs) | 180 (330) |
| Fuel consumption, L/100 km (mpg) -City -Highway -Combined | Mitsubishi Evolution IX 14.6 (32) 8.2 (39) 10.6 (35) |
| Turbocharger | TD04HL TD05H-13G TD05H-14B TD05H-16G-7 TD05H-16G6-7 TD05HR-15GK2-9.0T TD05HR-16G6-9T TD05HR-16G6-9.8 T TD05HR-16G6-10.5T TD05HR-16G6C-10.5T TD05HRA-15GK2-10.5T TD05HRA-16G6-9.8 T TD05HRA-16G6-10.5T TD05HRA-155G6C-10.5T |
| Oil consumption , L/1000 km (qt. per miles) | up to 1.0 (1 qt. per 600 miles) |
| Recommended engine oil | 5W-30 5W-40 5W-50 10W-30 10W-40 15W-50 |
| Engine oil capacity, L (qt.) | 5.1 (4.0) |
| Oil change interval, km (miles) | 7,000-10,000 (3,000-6,000) |
| Normal engine operating temperature, °C (F) | – |
| Engine lifespan, km (miles) -Official information -Real | – 300,000+ (180,000+) |
| Tuning, HP -Max HP -No life span loss | 400+ 350-400 |
| The engine is installed in | Mitsubishi Galant VR-4 Mitsubishi Lancer Evolution I-IX Mitsubishi Outlander Mitsubishi Eclipse I-II Mitsubishi Space Runner/RVR Eagle Talon/Plymouth Laser |
